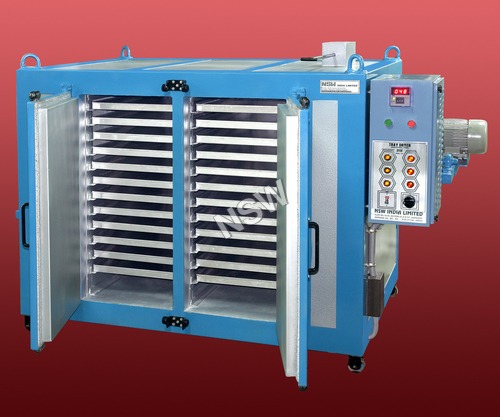

Product Description

Offering best quality Tray Dryer provides turn-key solutions in food industries for baking and drying food items at most affordable prices

Keeping in mind the current demands of our the market, we are able to manufacture and supply supreme quality Tray Dryer. These dryers are used to dry small and flat materials used in food industries for baking and drying food items. Our expert team members manufacture these dryers by making use of high-grade stainless steel and aluminum, supplied by our trusted vendors of the industry. These dryers are very easy to use and requires very low maintenance, therefore demanded by our customers across the industry. We are able to offer these dryers with fully insulated high-energy heating equipments which can reach temperatures up to 250 degree centigrade. To meet the various demands of our customers, we are able to offer the Tray Dryer in many specifications and sizes.

We are manufacturer, exporter and supplier of Tray Dryer for placement of product available with 6,8,12,24,48,96,192, aluminium Tray size 800 x 400 x 300mm. It has a temperature range of 50 to 250 deg.c. and 100 mm insulation is provided on all sides.

Features of Tray Dryer :-

Non-corrosive
Easy to operate Tray Dryers
Uniform heating system
Compact design Tray Dryers
High performance Tray Dryers
Low maintenance cost

Product Description

Construction: The oven is made out of mild steel from inside & outside and insulated with 100 mm of mineral bonded wool. It is painted with High Temperature aluminum paint from inside and given rich enamel finish from outside. Oven can also be made in Galvanized / Stainless steel on request.
Choice of Air circulation: Vertical, horizontal or combination
Trays of size 800 x 400 x 30mm will be provided along with the oven. The trays are made out of aluminum 1.2 mm thk. Sheets, Stainless or G.I. Trays are also available on request.
Exhaust vent with manually adjustable damper.
Heating media: Electric / Gas / Diesel
Control panel with Standard Controls
Voltage Stabilizer: in case of gas/diesel fired heating system

Technical Specifications

Model	Dimension (MM)			No. Of Trays	No. Of Trolley
Model	Depth	Width	Height	No. Of Trays	No. Of Trolley
Td-6	840	430	540	6
Td-12	840	430	915	12
Td-24	840	915	915	24
Td-48	825	1425	1425	48	1
Td-96	1650	1425	1425	96	2
Td-192	3500	1425	1425	192	4
Td-288	5150	1425	1425	288	6
